Advanced公司有着30多年的连接器专业设计经验 , 并自家拥有多样化的生产设备及配件 , 可以创新设计高可靠的电子应用连接方案。跟竞争对手 , 与别不同。我司富经验的工程师与客户紧密联系 , 并能了解客户的应用要求 , 为客户提供专有的设计方案和高可靠性的快速样品。
生产各类插座及印刷板插针/插座，板对板连接器，IC插座和转换器，封装转换器，BGA插座:提供0.75至1.5mm间距,各种脚位均可订制
PGA插座:4至840位
PEEL-A-WAY(轻揭式):专利无座式设计, 方便安装节省空间
插针/插座:数百款标准或非标准插座
订制:插针/插座可按客户要求

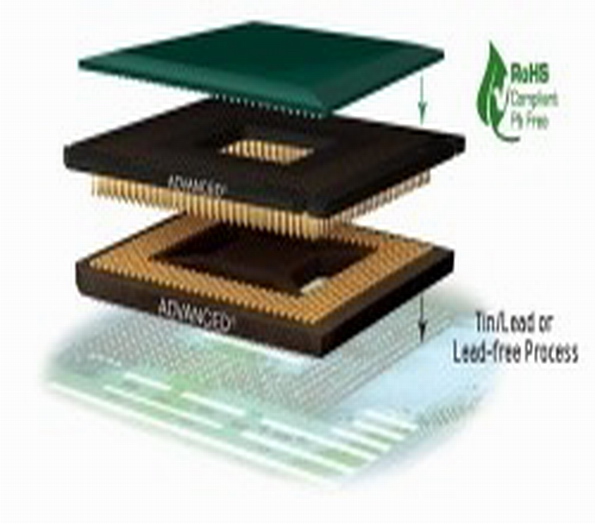

* Protects valuable PC boards and subjects device to lower thermal stress.
* Same footprint as BGA device.
* Multifingered, high reliability contacts and screw-machined terminals for superior reliability.
* Value-added features such as eutectic SnPb and lead-free SnAgCu solder balls, pick-and-place seal, and tape and reel packaging reduce processing and application costs.
* RoHS Compliant insulators and terminals are compatible with lead-free processing - select new lead-free solder ball terminals for SMT applications产品资料:
0.80、1.00、1.27mm间距BGA插座适配器系统数据表
技术参数
参考连结:Contact Acceptance Range Data:
1. Device Dimension & Design Your Own Footprint Form
AIC_BGA_DesignYourOwn_16A_rev1_Fillable.pdf
2. Typical Soldering Process Examples - Tin/Lead and Lead-free Generic Reflow Profiles
AIC_BGA_SolderProfiles_16A_rev0.pdf
3. Signal Integrity Simulation and Modeling (SI Profiles, Crosstalk, Eye-Diagrams and Conclusions in PDF format) - 0.80mm Pitch
Aic-080bga-sktadpt-signalintegrity-rev2.original.pdf
4. Signal Integrity Simulation and Modeling (SI Profiles, Crosstalk, Eye-Diagrams and Conclusions in PDF format) - 1.00mm Pitch
Aic-1mmbga-sktadpt-signalintegrity-rev2.original.pdf
